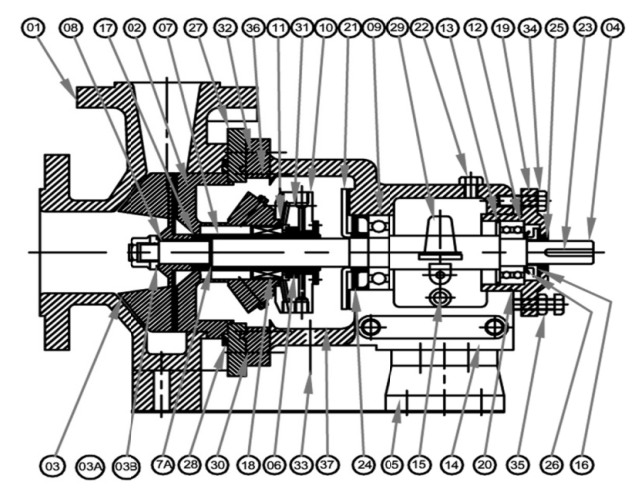

Section View
Home / Section View
Service Coverage
NAKLANK Make SCP Pump Covers 90% of All Process Industy Requirements . The Pump Covers a Wide Range of Chemical Services :
Chemical
caustic transfer, acid unloading, monomer and polymer transfer, molten sulphur and ure, liquid ammonia, liquid nirogen.
Petrochemical
aromatics, low specific gravity hydrocarbons, gas oil.
Pulp and Paper
Digester make-up-green and white liquor.black liquor recovery.coating slurries-clay ,titanium dixoide and alum transfer.
Primary Metals
Waste acid recovery scrubber sevices, pickle liquor circulation.
General
Textile, food, pharmaceutical and polution control-chilled water, condensate return, acid recovery.stack scrubbers, filter feed dm water plant.
New wpDataTable
| Part No | Description | Standard Material |
| 01 | Casing | CS | CF8M | CF3M | CF4MCu | A-20 | HC | HB |
| 02 | Stuffing Box Cover/ Bback Plate | CS | CF8M | CF3M | CF4MCu | A-20 | HC | HB |
| 03 | Impeller | CS | CF8M | CF3M | CF4MCu | A-20 | HC | HB |
| 03A | Impeller Nut | CS | CF8M | CF3M | CF4MCu | A-20 | HC | HB |
| 03B | Nut Gasket | PTFE |
| 04 | Shaft | EN-8 | S.S.316 |
| 05 | Support Foot | C.I. |
| 06 * | Stuffing Box Packing | TIWA/GRAFOIL/PTFE |
| 07 * | Shaft Sleeve | SS-410 | CF8M | CF3M | CF4MCu | A-20 | HC | HB |
| 07A * | Sleeve Gasket | PTFE |
| 08 * | Impeller Key | S.S.316 |
| 09* | Bearing Inboard (6309) | Steel |
| 10 | Gland Pusher | CS | CF8M | CF3M | CF4MCu | A-20 | HC | HB |
| 11 * | Gland Pusher Seal Ring | PTFE |
| 12 * | Bearing Outboard (3309) | Steel |
| 13 * | Retaining Ring/Circlip | Steel |
| 14 | Bearing Frame | C.I. |
| 15 | Bearing Oil Drain Plug | Steel |
| 16 | Bearing Lock Nut | Steel |
| 17 * | Impeller Seal Ring | PTFE |
| 18 * | Lantern Ring | Glass Filled PTFE |
| 19 | Bearing Cover Cut Board | C.I. |
| 20 * | 'O'-Ring | Neoprene |
| 21 | Deflector | S.S.304 |
| 22 | Oil Breather | Steel |
| 23 | Key-Coupling Seal | S.S.316 |
| 24 * | Oilseal Inboard | Buna Rubber |
| 25 * | Oilseal Outboard | Buna Rubber |
| 26 | Bearing Lock Washer | Steel |
| 27 | Adaptor | C.I. |
| 28 * | Gasket Casing to St.Box Cover | PTFE |
| 29 | Constant Level Oiler | Steel |
| 30 | Stud/Nut-Casing | Steel |
| 31 | Stud/SBCvr- to Gland | Steel |
| 32 | Stud/Nut-SBCvr to BearingFrame | Steel |
| 33 | Stud/Nut-Gland | Steel |
| 34 | Bolt-Brj Cover to Brg Frame | Steel |
| 35 | Bolt/jam Nut-Impeller Adj. | Steel |
| 36 | Bolt-adpt to Brg Frame | Steel |
| 37 | Jack Bolt | Steel |
